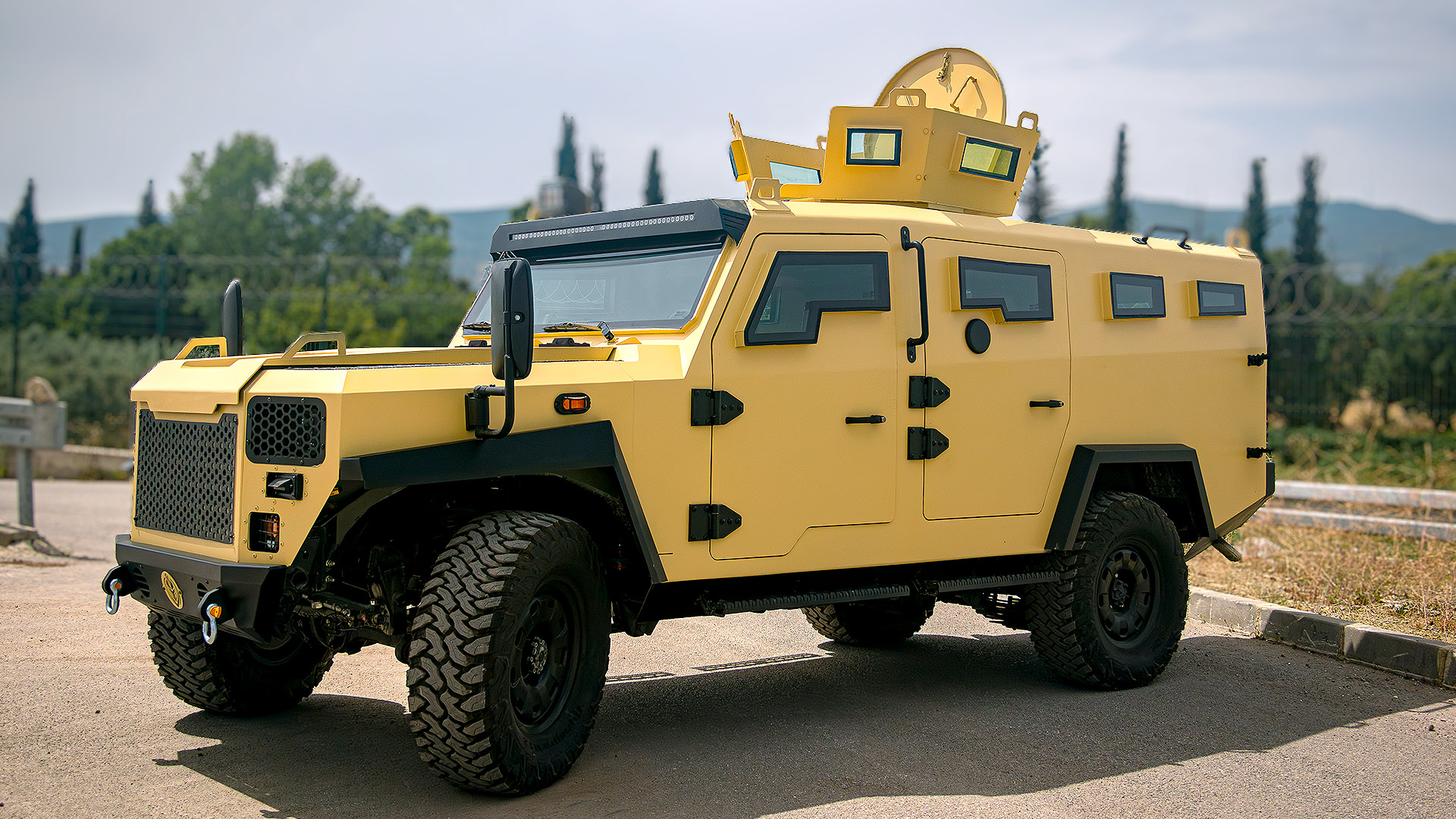

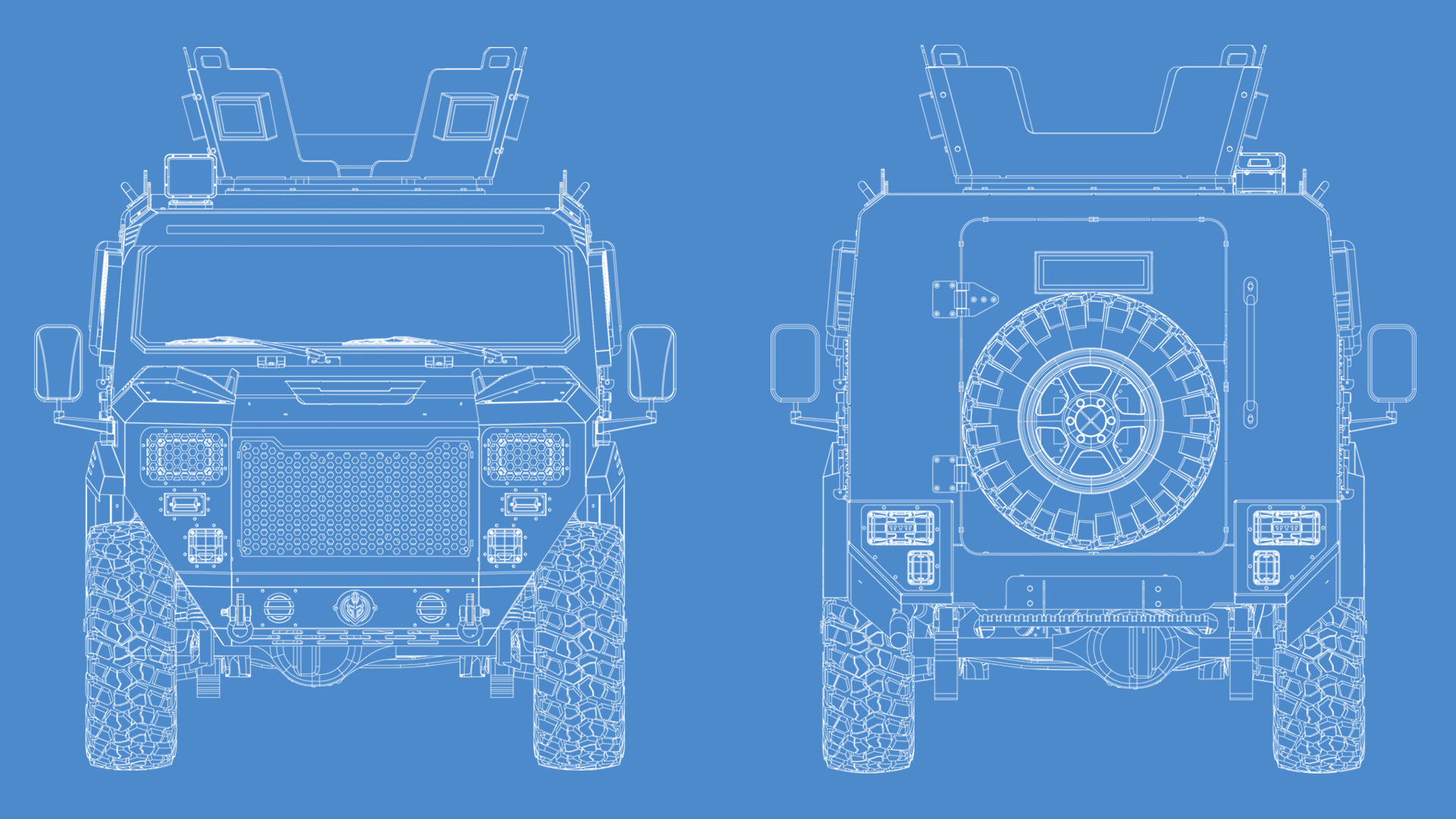

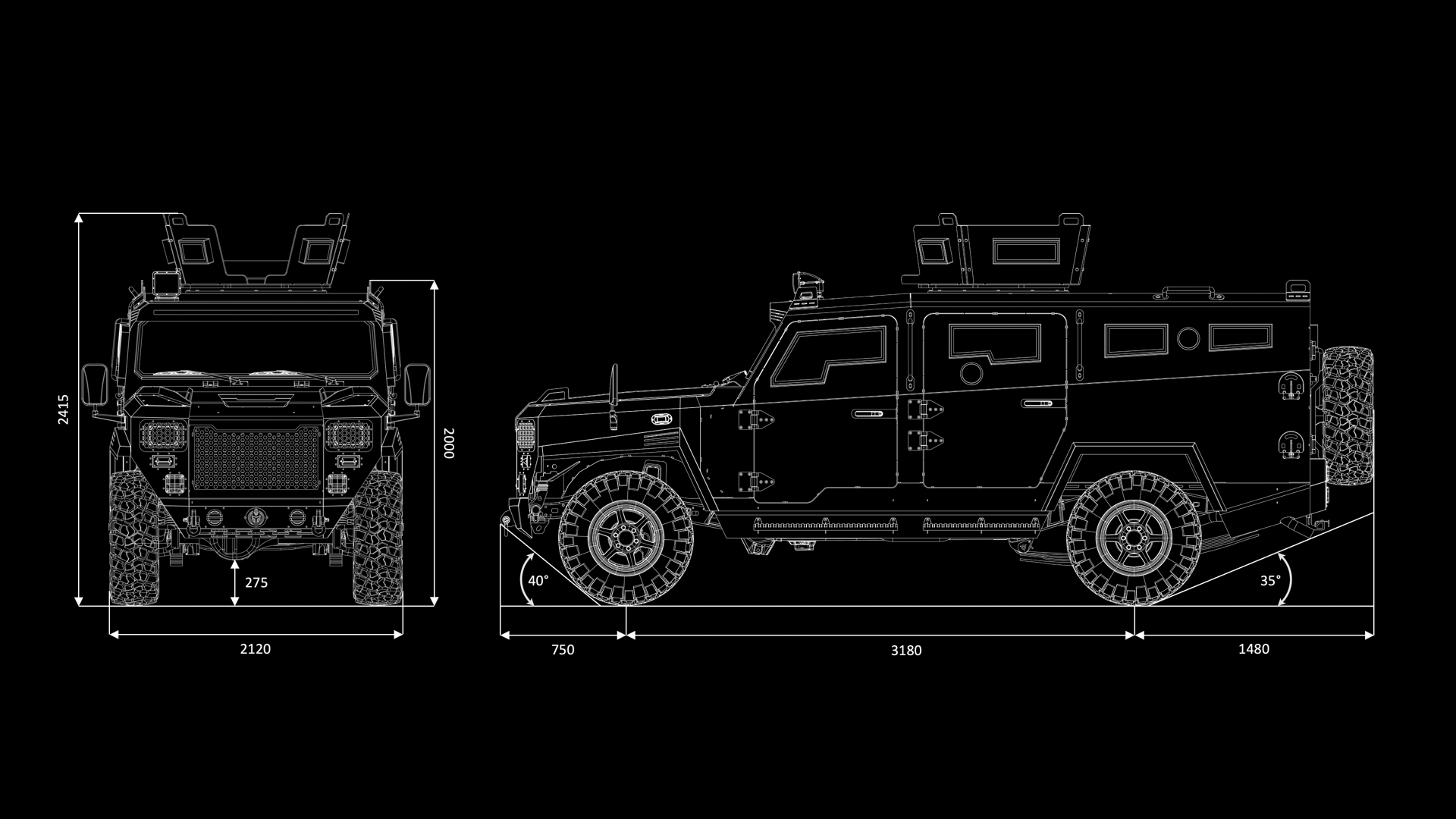

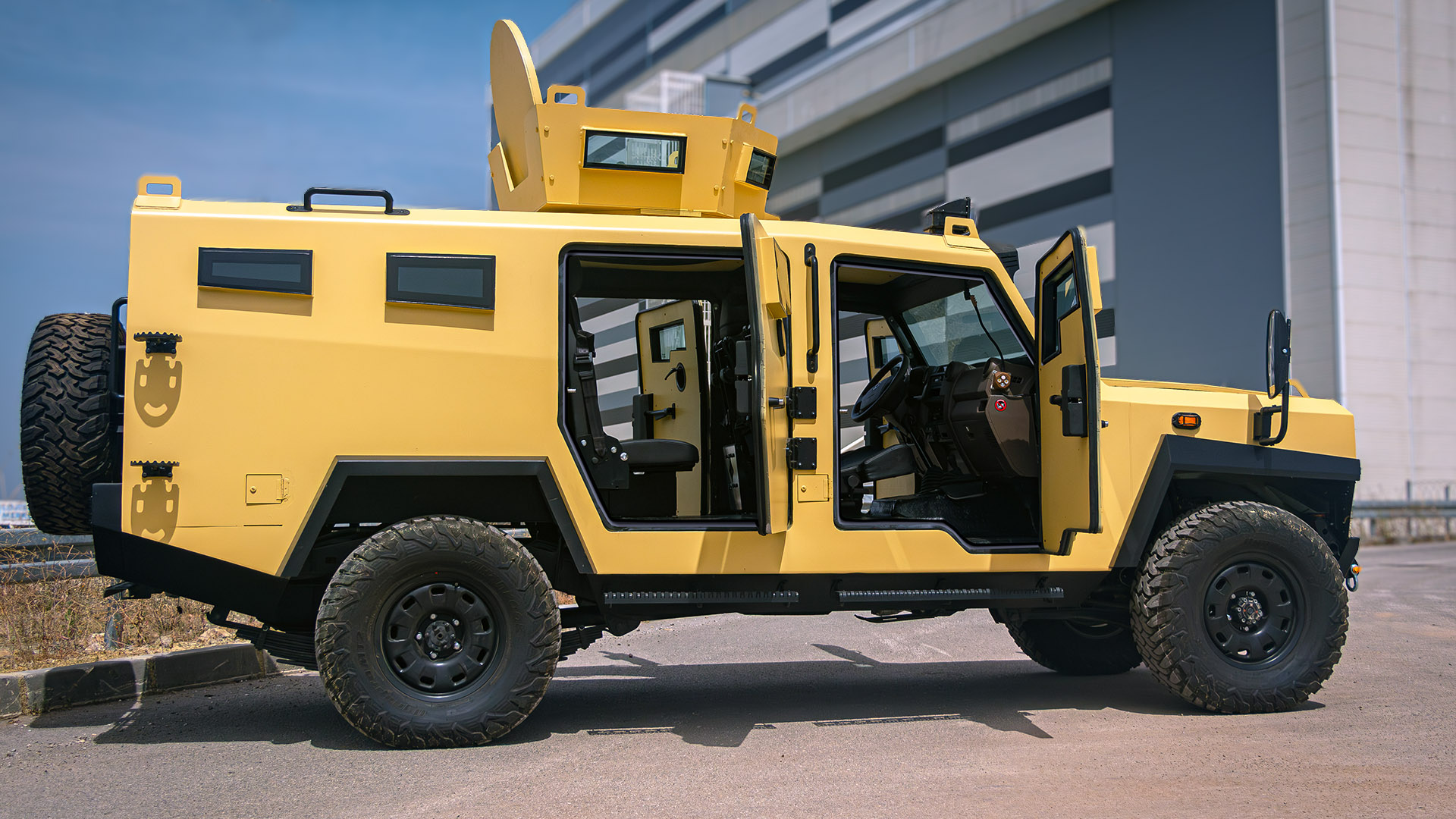

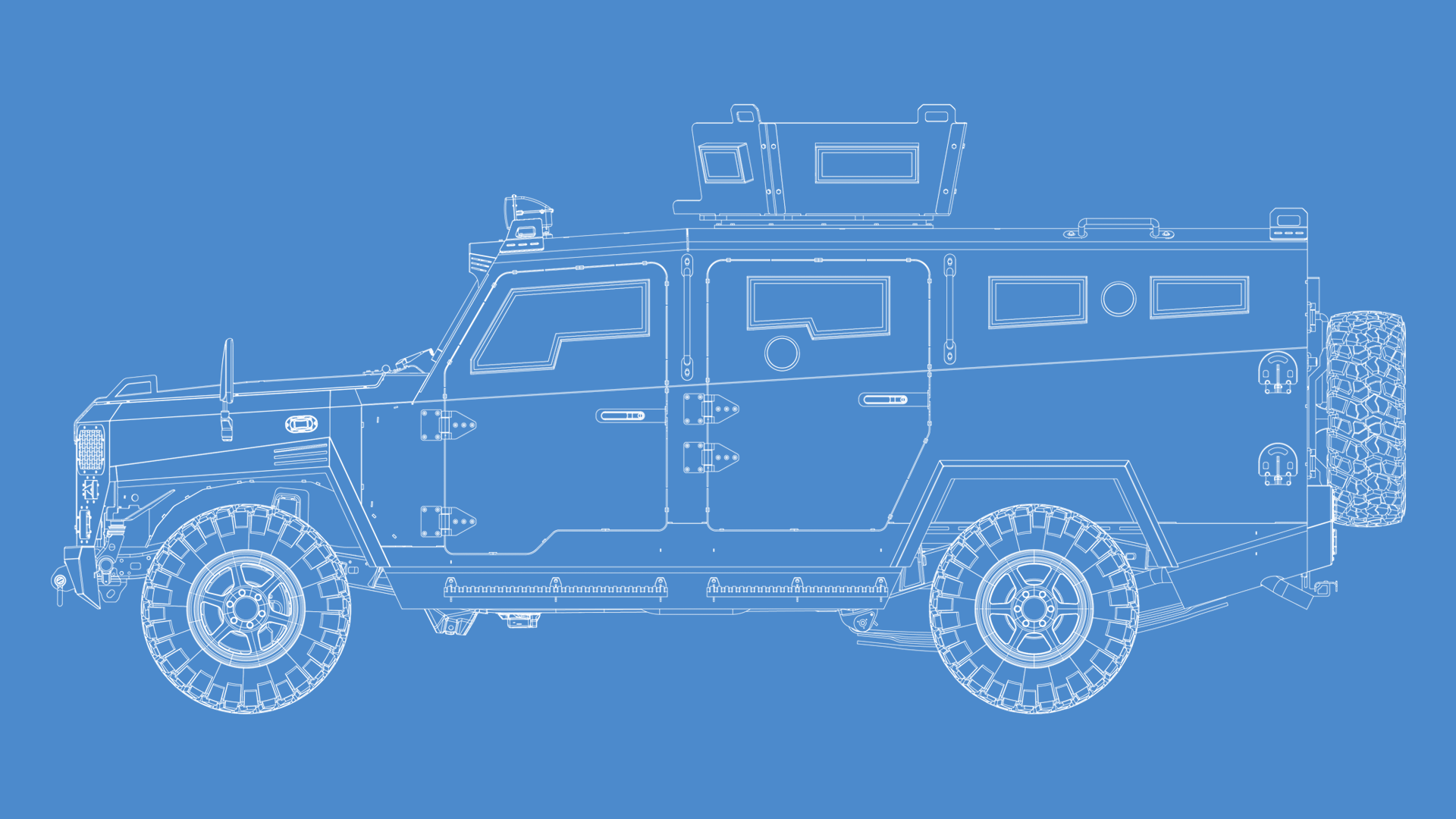

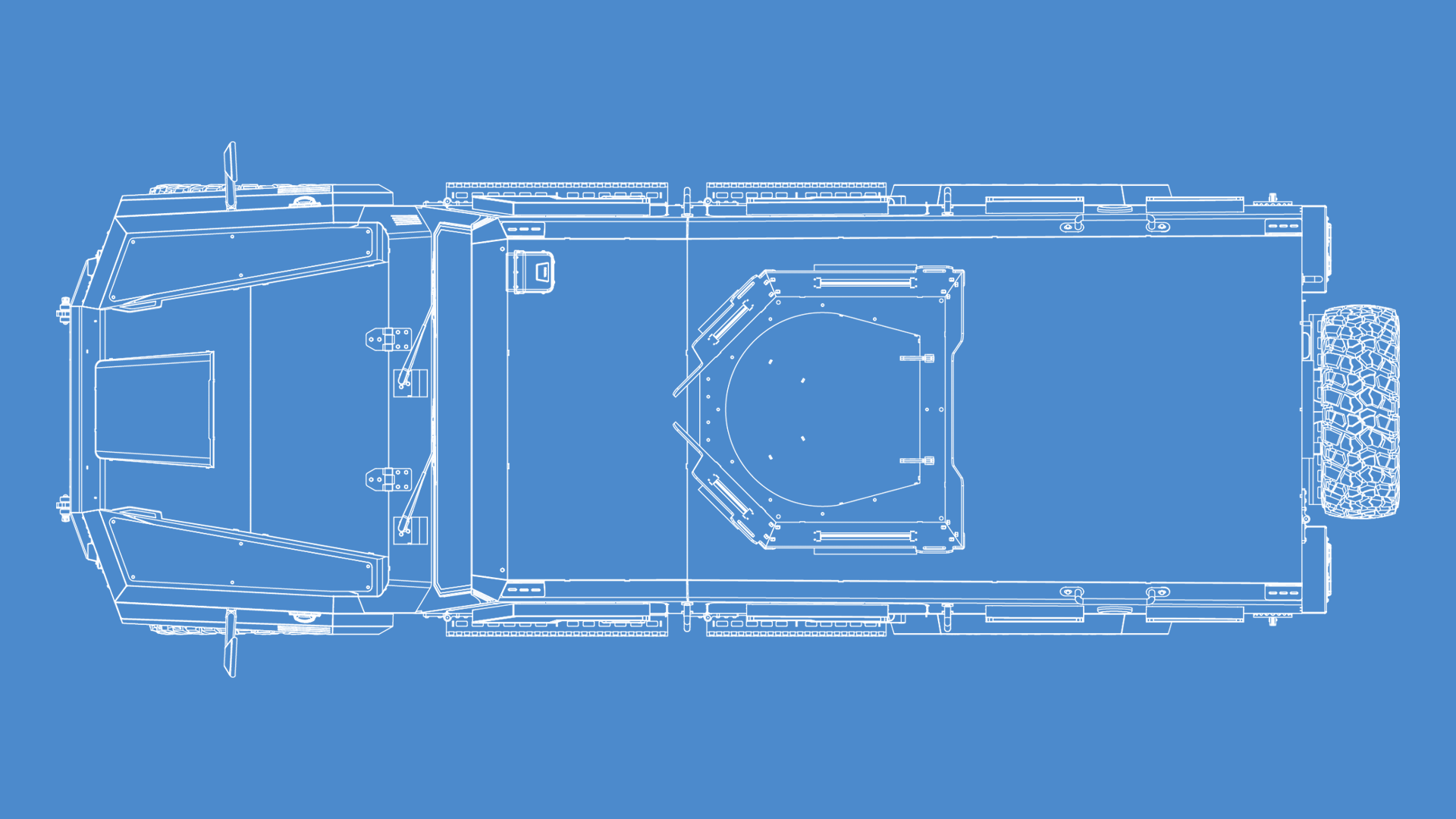

GS-5DW (5-Door full-length body)
Protection level: CEN1063/1522 BR6/FB6 or STANAG 4569-2

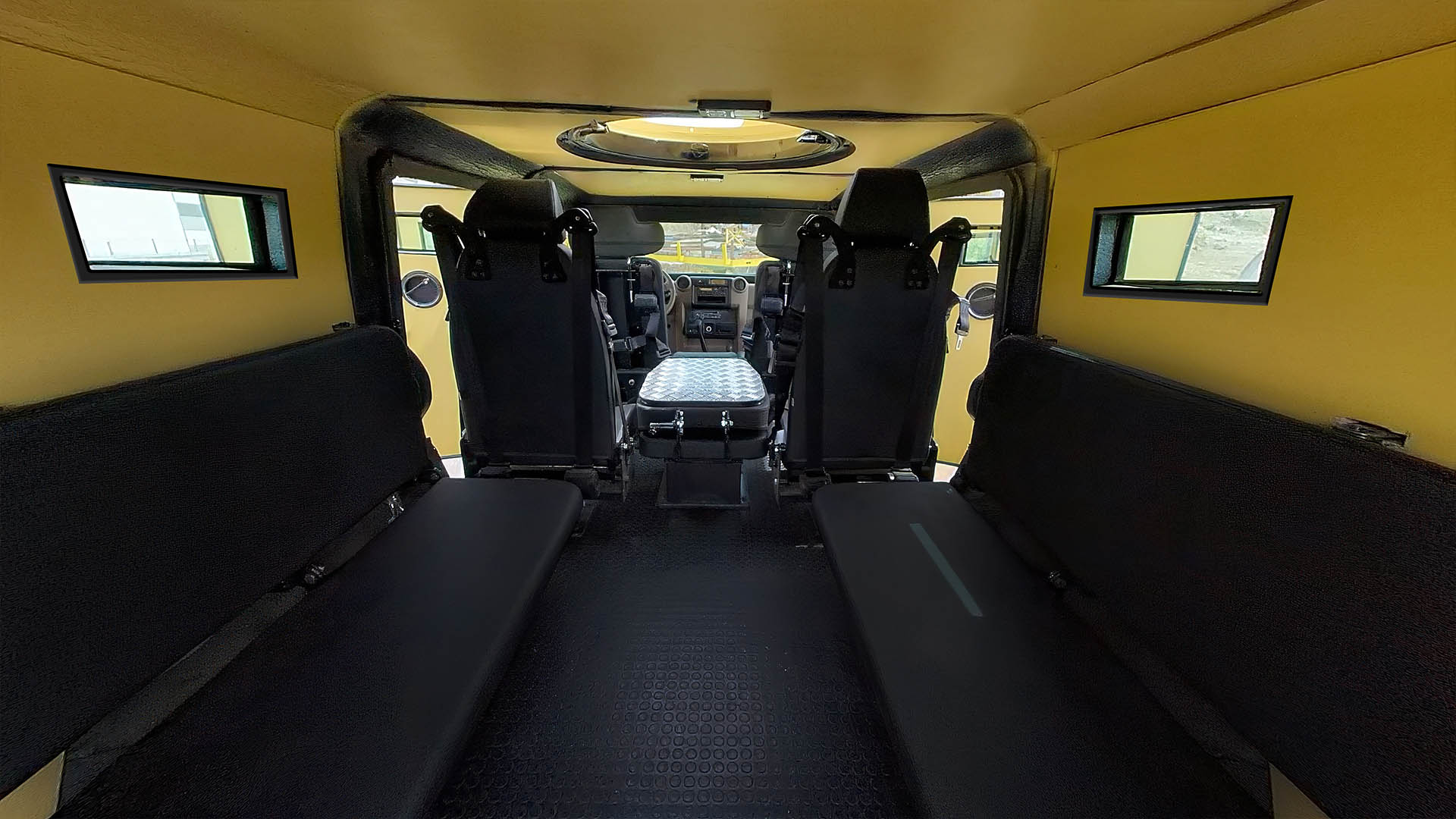

Seats up to 11 with multiple seating-layouts possible

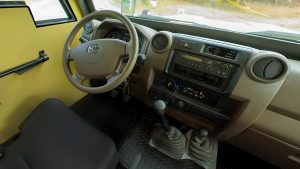

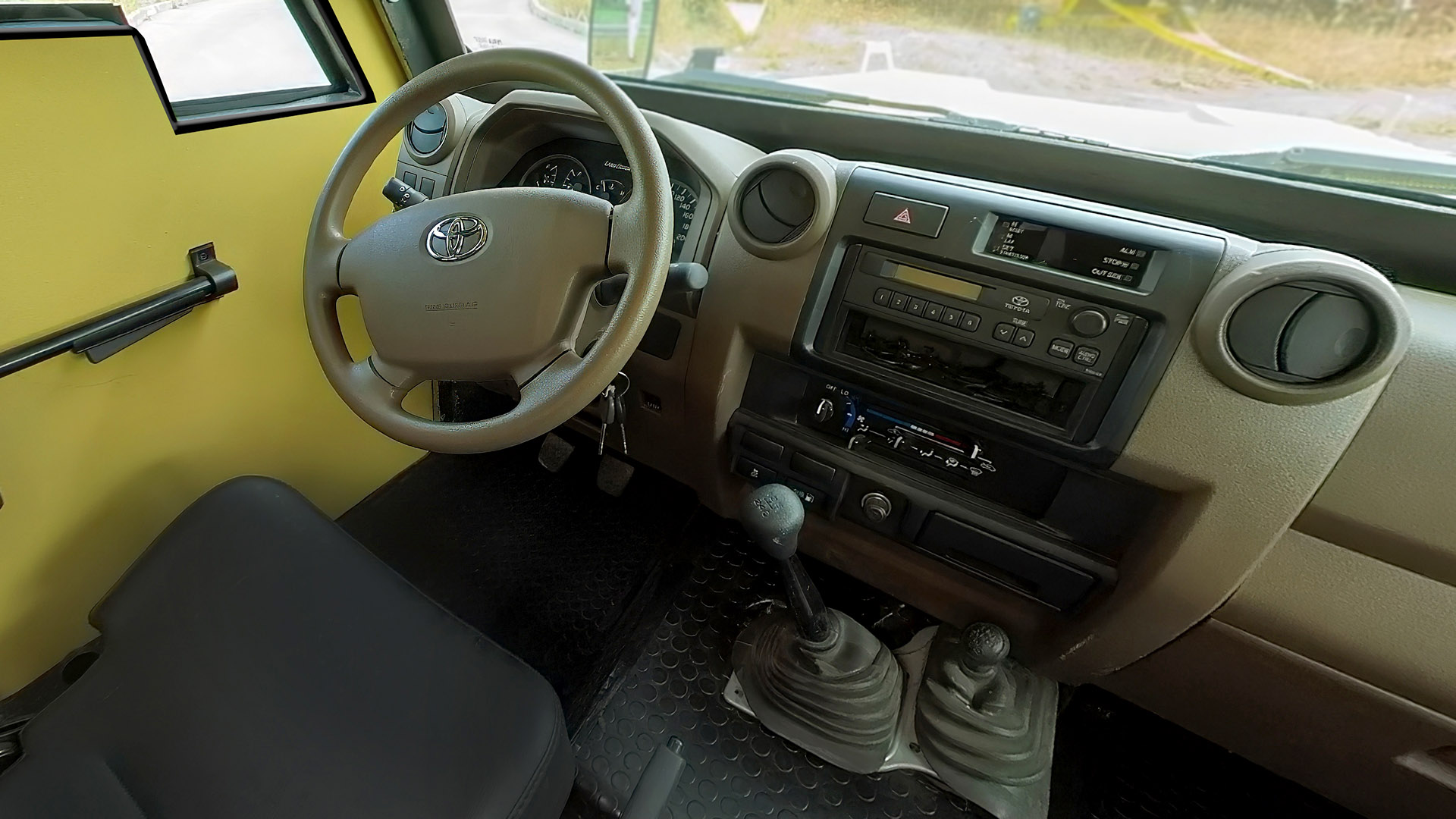

Toyota 70-Series driveline with bespoke suspension and heavy-duty brakes
Engine-gearbox options:
- 4.0l petrol: 236hp/361Nm with manual or automatic gearbox (42.9hp/t)
- 4.5l diesel: 202hp/430Nm with 5-speed manual gearbox (36.7hp/t)
- 2.8l diesel: 201hp/500Nm with 6-speed automatic gearbox (36.5hp/t)
- 4.2l diesel: 129hp/285Nm with 5-speed manual gearbox (23.4hp/t)

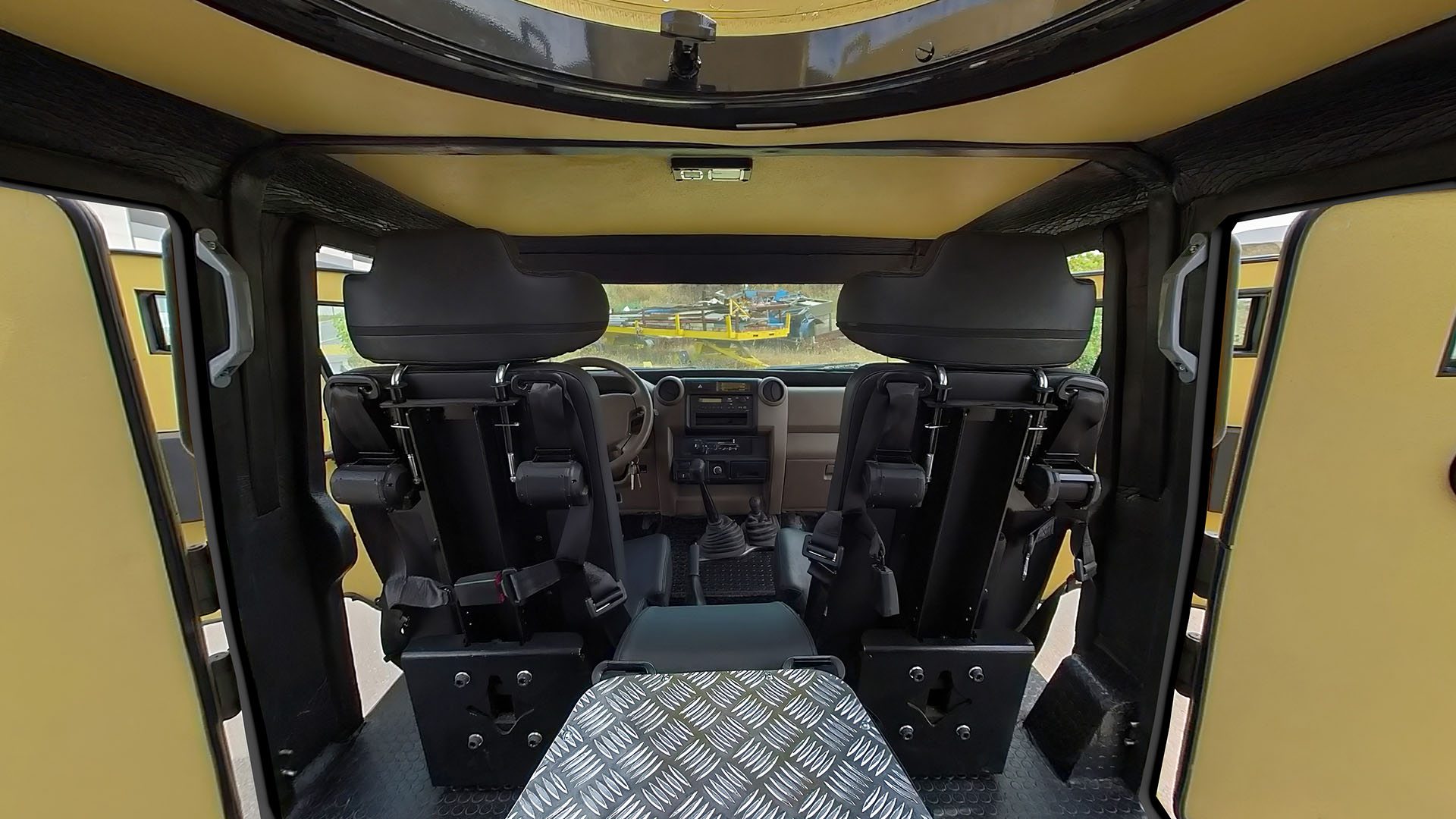

Mil-spec seats with 4-point harnesses
Mil-spec black-out lighting

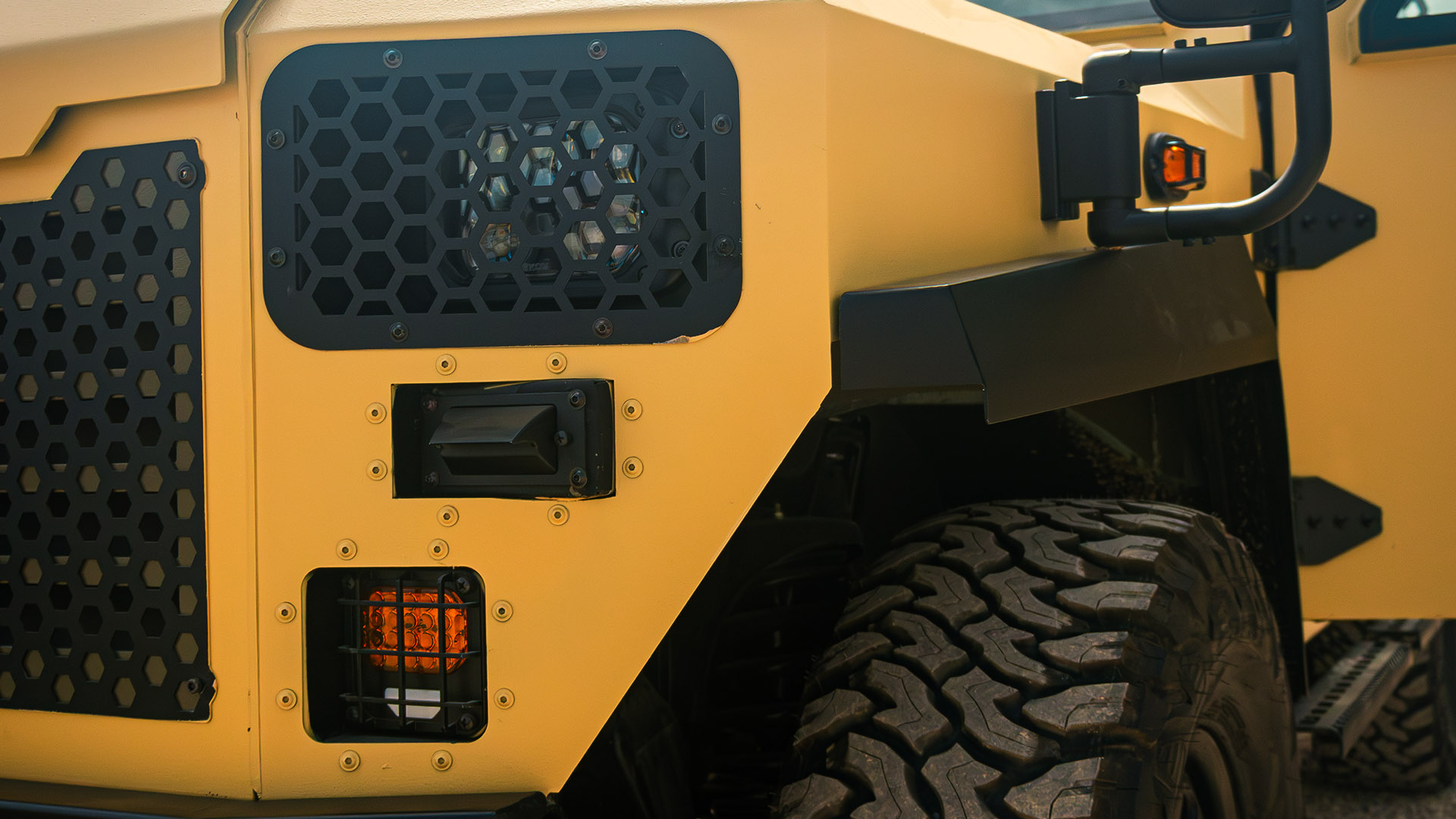

Heavy-duty rims and tyres
Optional equipment (list non-exhaustive):

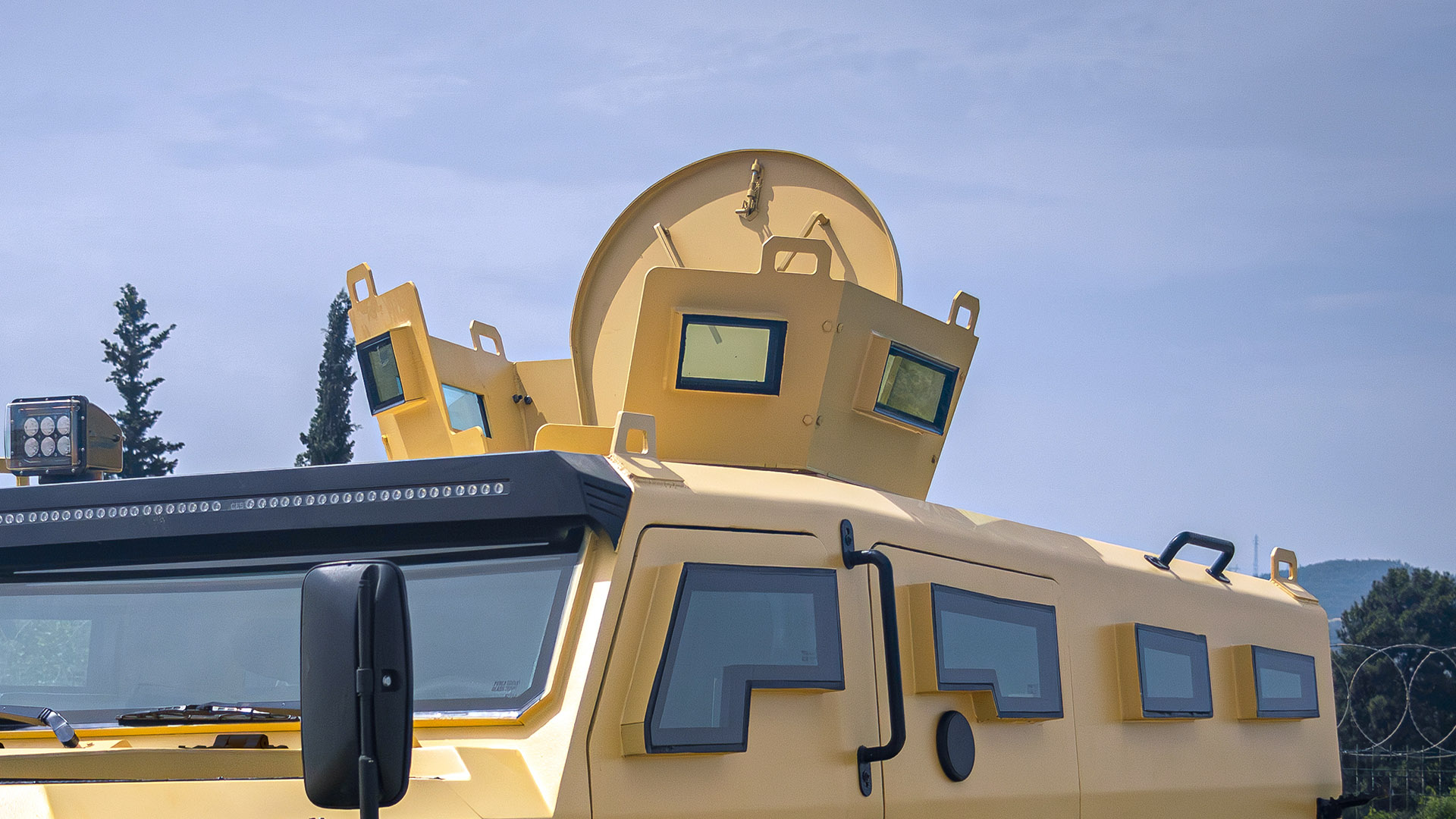

360°-traverse ring-mount with or without gunner protection
Remote-control weapon-station
Roof-hatch emergency exit
Police equipment with rear holding-cell
Our STANAG 4569 level 2 –protected vehicles are armoured using materials, both opaque and transparent, that meet or exceed the requirements of the
NATO Allied Engineering Publication AEP55 Volume 1 and Standardization Agreement STANAG 4569 level 2 for Main Areas ballistic evaluation at 90° impact angle (0° obliquity) for all “vertical” surfaces and 30° impact angle (60° obliquity) for the roof.
Armouring
All four sides of the passenger compartment are protected using high-quality armour steel and glass defeating 7,62 mm x 39 API BZ at 0° incidence (90° to the strike face) and 695±20m/s striking velocity.
The roof of the vehicle is protected against the same ammunition at 60° incidence (30° to the strike face).
Opaque Areas
All opaque areas including the roof are protected against the following and all lesser weapons/ammunitions at 90° impact angle (30° for the roof) in accordance with the above specifications.
·Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
·Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
·Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
·Calibre 7,62 x 39 mm API BZ (Chicom, CIS State arsenals, 7.77 g steel core)

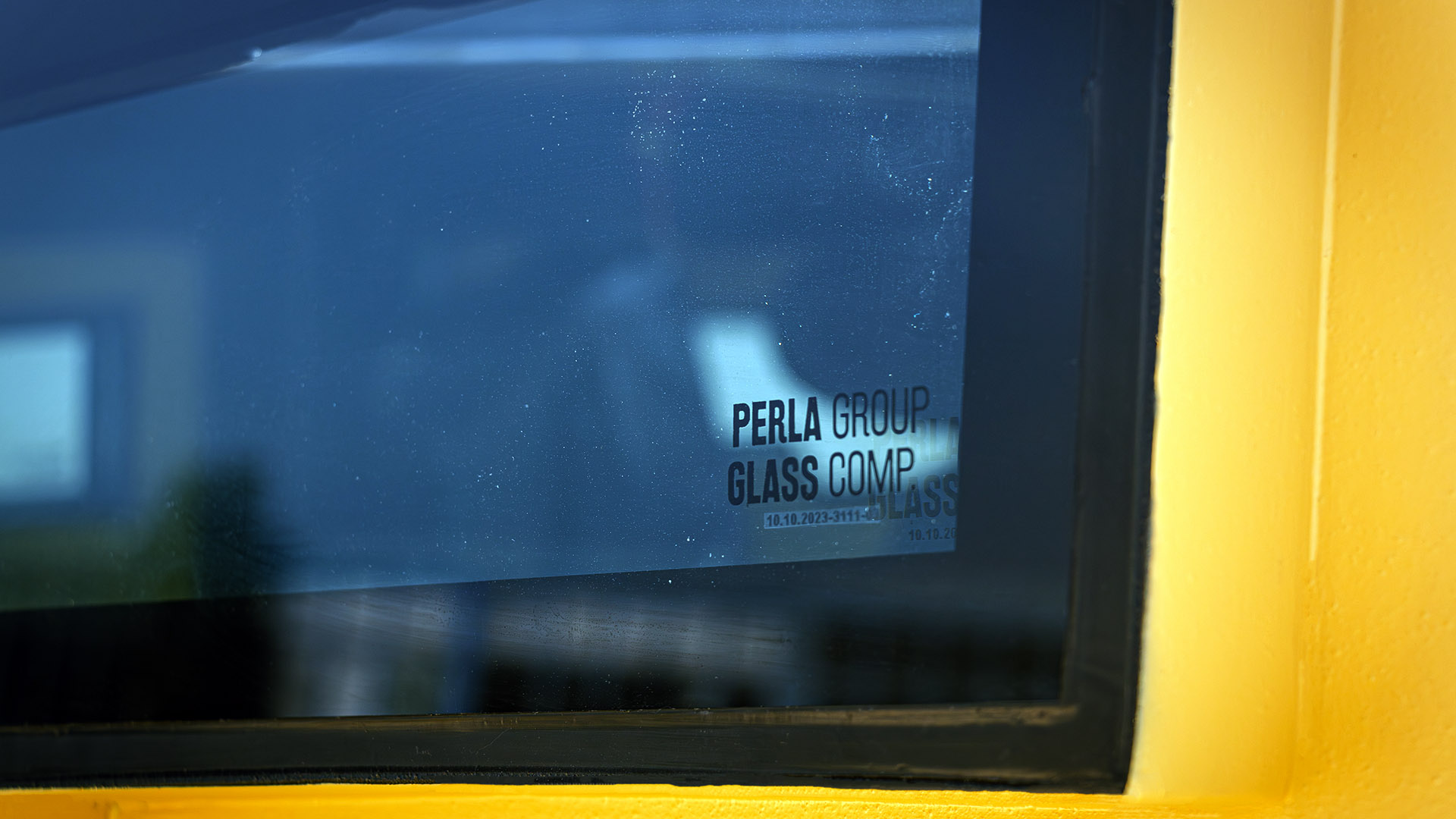

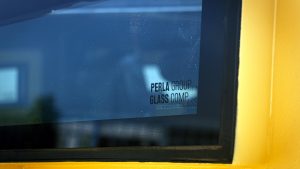

Transparent Areas
All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ammunitions at 90° impact
angle in accordance with the above specifications.
·Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
·Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
·Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
·Calibre 7,62 x 39 mm API BZ (Chicom, CIS State arsenals, 7.77 g steel core)
Floor
The floor of the vehicle is designed to defeat the fragmentation hand grenades such as the DM51 or the HG85 and small AP landmines such as the DM31 and to withstand a blast of up to 6kg of TNT under the vehicle.
Extreme Mobility Package
·Widened and strengthened Heavy-Duty rear axle for improved stability and increased payload
·Rear Coil-Spring Suspension for improved handling on- and off-road
·Locking differential front and rear
·High differential ratio for better acceleration
·Central Tyre-Inflation System
Further optional equipment available at extra cost, such as
·Roof ring for weapon mount
·Protected cupola (turret)
·Weapon mount suitable for 7.62 GPMG or 12.7mm MG
·Remote-control weapon station with 7.62 or 12.7mm cannon
·Additional roof-hatches
·Blast-mitigating driver/commander seats with 4-point harness
·Blast-mitigating crew seats with 4-point harness
·Front-mounted electric winch
·Tool-kit, hydraulic heavy-duty jack, fire extinguisher
·2-way intercom
·Front and rear strobe-lights
·Police siren/Public address system
·Communications equipment (VHF, UHF, satellite, C4ISR…)
·Electronic Counter Measure Equipment (RF Jammer)
·Video recording/surveillance equipment
·Ambulance equipment
·Other – Please let us know your specific requirements
